Why AI Needs Smarter Storage？

Design, Deploy and Operate your Private AI Infrastructure

AI Storage

AI workloads aren’t just larger IT workloads — they have fundamentally different I/O patterns, and storage performance directly impacts GPU utilization, the most expensive resource in your stack.

Artificial Intelligence workloads fundamentally differ from traditional enterprise applications in how they access and process data.

Conventional NAS and SAN systems were designed for transactional workloads and moderate concurrency — not the scale, parallelism, and throughput demands of AI training and inference.

AI training reverses those assumptions: hundreds of GPU workers may access the same dataset simultaneously, generating I/O patterns that range from millions of small random reads to multi-GB sequential streams.

The storage layer directly determines GPU utilization efficiency — the most expensive resource in your stack.

A purpose-built storage tier isn't a nice-to-have. Every millisecond a GPU spends waiting on data is a millisecond of capital sitting idle. That single fact reshapes the entire design brief.

Massive throughput demand

Training jobs require continuous streaming of large datasets to hundreds of GPUs simultaneously, creating sustained bandwidth far exceeding traditional NAS.
‍

High concurrency access

Distributed training frameworks like PyTorch and TensorFlow have many compute nodes hitting the same dataset concurrently, stressing metadata and file-access layers.

GPU sensitivity to I/O latency

GPUs process data at extremely high speeds. Any delay in data delivery results in idle GPU cycles — directly impacting performance and cost efficiency.
‍

Mixed data patterns
‍

AI pipelines handle millions of small files (images, tokens) and large sequential datasets (Parquet, TFRecord) — requiring storage that handles both extremes well.
‍

Checkpointing & burst writes

Technical assistance for OnePlus™ system and developer environments.

‍
‍

Storage Aligned to
Every Workload Tier

Optimized for AI workloads

AI Storage

AI storage is not one-size-fits-all. We design four workload-aligned tiers optimized for bandwidth, latency, parallel access, and scalable performance.

High-Performance Tier

Training workloads

Requirements

Ultra-high throughput (tens to hundreds of GB/s)
Low-latency access via RDMA / InfiniBand
Parallel file system support

Recommended design

NVMe-based distributed storage cluster
Parallel file system (Spectrum Scale / Lustre)
Dedicated InfiniBand / high-speed Ethernet fabric
GPU Direct Storage (GDS) enabled

Balanced Performance Tier

Inference workloads

Requirements

Low latency for real-time predictions
Moderate throughput
High availability

Recommended design

Hybrid storage (NVMe + SSD tiers)
Distributed file / object storage
Caching layer for hot models
NVMe-based distributed storage cluster

Capacity Tier

Data lake & preprocessing

Requirements

Large-scale data storage at PB-level
Cost efficiency
Flexible access (structured / unstructured)

Recommended design

Object storage (S3-compatible)
Tiered storage (HDD + cloud / archive integration)
Integrated data lifecycle management

MULTI-TENANT / GOVERNANCE TIER

SHARED AI PLATFORM OPERATIONS

Requirements

Resource isolation
QoS and workload scheduling alignment
Secure data segmentation

Recommended design

Parallel file system with policy-based controls
Integration with Kubernetes / Slurm schedulers
Caching layer for hot models

How We Design
Around the Workloads

AI storage design starts from the workload

We Design

AI storage design starts with the workload — translating GPU utilization goals into architecture decisions.

Understand the AI Workload Profile

First, identify whether the environment is mainly for training, fine-tuning, inference, data preprocessing, or mixed AI/HPC workloads. Training requires high throughput and low latency to feed GPUs continuously; inference requires fast access to model files, checkpoints, embeddings, and application data.

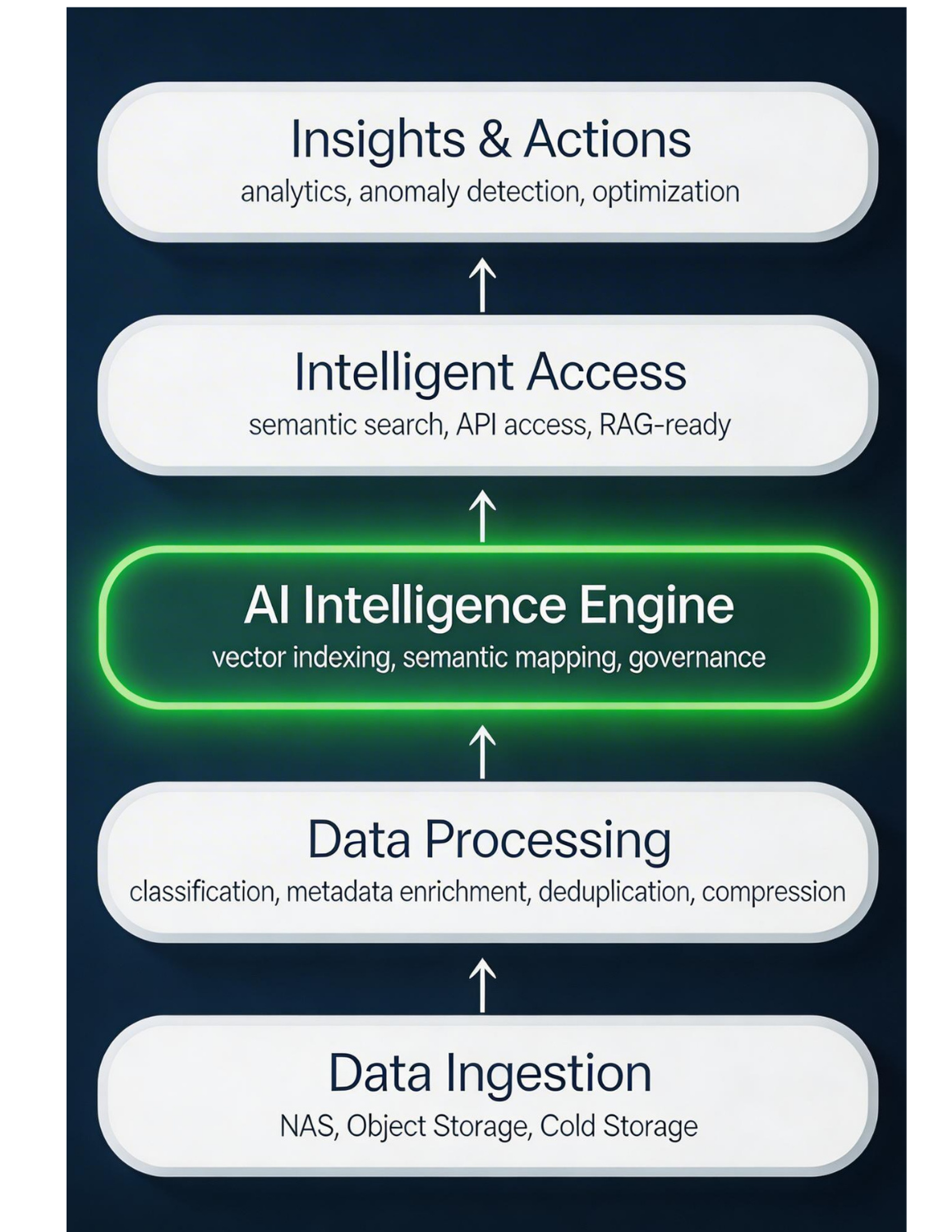

Analyze the data pipeline

Map how data moves from ingestion to preprocessing, training, checkpointing, validation, and model deployment. AI storage must support large datasets, frequent small-file access, high-speed sequential reads, and heavy checkpoint writes — without becoming a bottleneck.

Define performance requirements

Calculate required bandwidth, IOPS, latency, and concurrency based on the number of GPU servers, GPU type, batch size, dataset size, and expected number of simultaneous jobs. The goal is to keep expensive GPUs fully utilized rather than waiting on data.

Select the right storage architecture

For serious AI training clusters, a parallel file system such as IBM Spectrum Scale / GPFS, Lustre, BeeGFS, DDN EXAScaler, VAST, or WEKA is often preferred over traditional NAS. These systems are engineered for parallel access, high throughput, metadata performance, and multi-node scalability.

Design for different data types

A strong AI storage design separates tiers: high-performance NVMe flash for active training data and checkpoints, capacity storage for raw datasets and archives, and S3-compatible object storage for long-term data lakes or model repositories.

Integrate with the AI network fabric

Plan for security & governance

Validate before production

Before full deployment, run benchmark tests using realistic AI workloads — not only synthetic storage tests. Validate GPU utilization, data loading speed, checkpoint performance, metadata performance, and failure recovery.

Co-optimized AI Infrastructure

GPU, network, and storage must work as one.

GPU+Network+Storage

A turnkey AI storage platform designed, deployed, and managed for secure, scalable, cost-efficient GPU workloads.

Workload to production-ready AI

AI infrastructure designed for production from Day 1.

Seven-phase Delivery

Seven phases transforming GPU infrastructure into a managed private AI platform.
